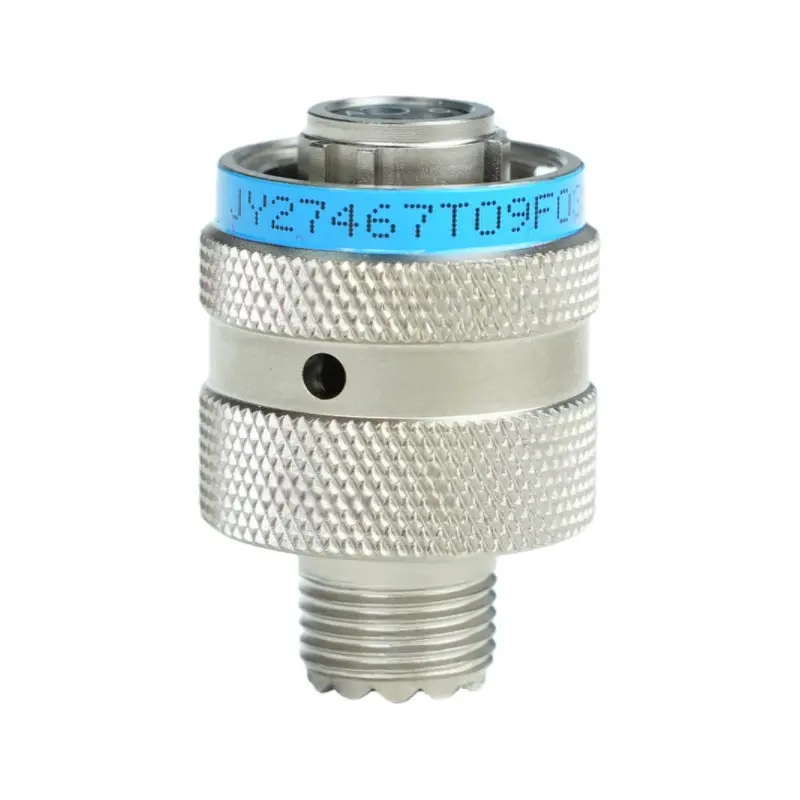

JY27467T09F03SN | MIL-DTL-38999 Series I Connector
原价为：$17.00。$15.00当前价格为：$15.00。pcs
JY27467T09F03SN (MIL-DTL-38999 Series I) High-performance plug features a size 09 aluminum shell with electroless nickel plating and 3 size 20 socket contacts. Rapid bayonet coupling ensures superior EMI shielding for aerospace and defense.
库存 9999 件
| from 100 pcs. | from 200 pcs. | from 300 pcs. |
|---|---|---|
Description

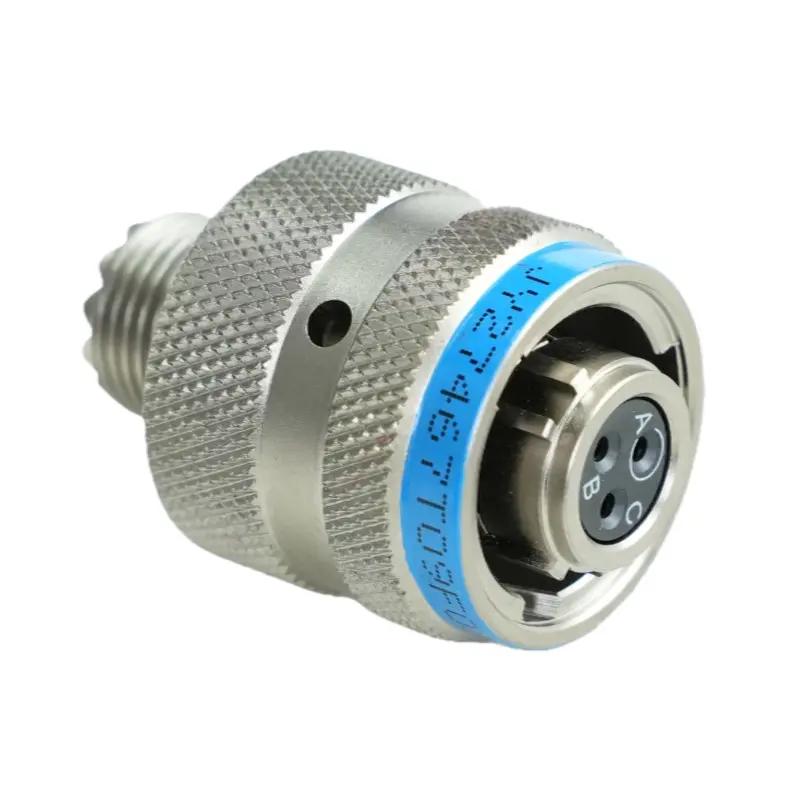

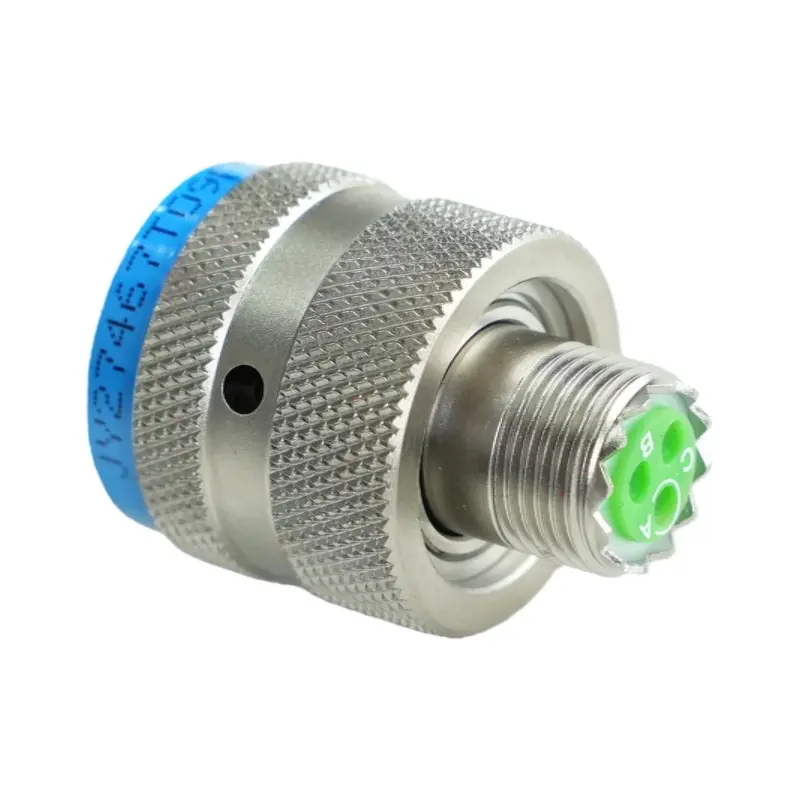

JY27467T09F03SN | MIL-DTL-38999 Series I Straight Plug
The JY27467T09F03SN is a high-performance, military-grade interconnect solution designed for modern avionics and tactical defense systems. It provides a scoop-proof interface ensuring pin protection in hostile environments.
Utilizing a size 09 aluminum shell with an electroless nickel finish, it balances lightweight portability with corrosion resistance. The internal 09-03 configuration features 3 precision size 20 socket contacts for high-fidelity data transmission. Its 120-degree bayonet coupling provides tactile locking feedback, ideal for high-vibration missions.
Structural Configuration & Material Science
Shell & Finish
Precision CNC machined aluminum alloy with Electroless Nickel (Class F) plating. Provides a low-impedance ground path and exceptional EMI shielding (>65dB at 10GHz).
Insulation & Seals
Fluorosilicone elastomers provide a hermetic seal against aviation fuels and hydraulic fluids. The dielectric insert maintains >5000 MΩ resistance across thermal cycles.
Detailed Specifications
| Attribute | Specification Requirement |
|---|---|
| Part Number | JY27467T09F03SN |
| Military Equiv. | MIL-DTL-38999 Series I / MS27467 |

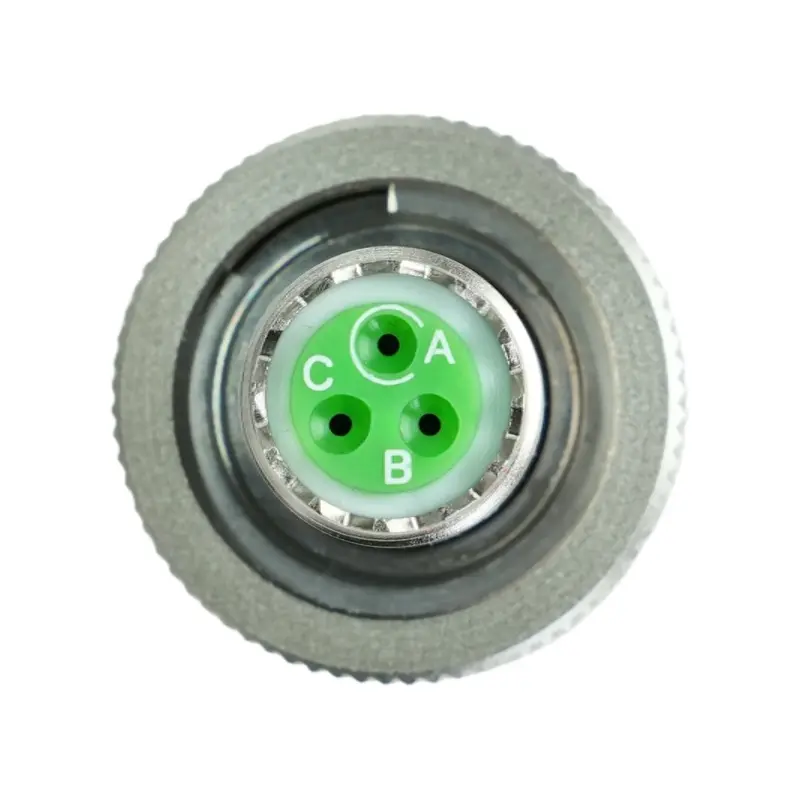

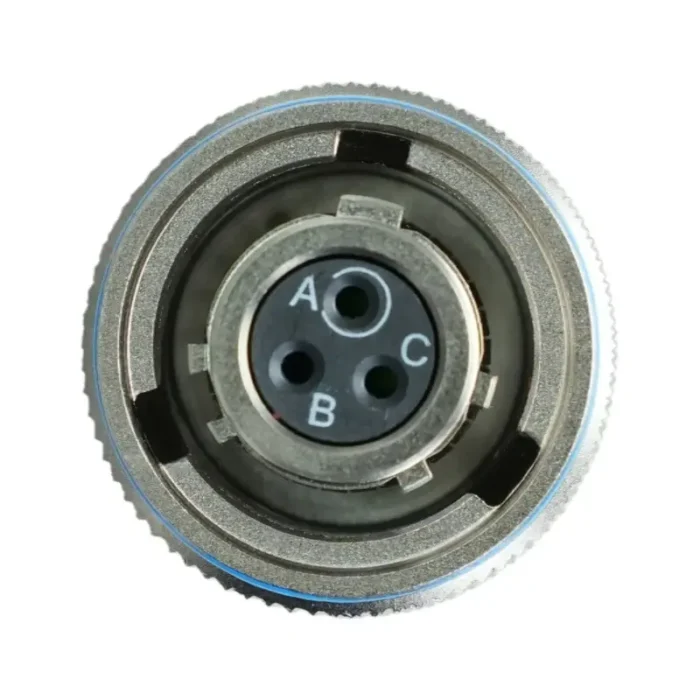

| Contact Arr. | 09-03 (3 x Size 20 Socket) |
| Coupling | Quick-Disconnect Bayonet |
| Dielectric | 1300 VAC (Sea Level) |
Operational Theaters
The integrated RFI grounding fingers establish 360-degree continuity, essential for electronic warfare and tactical radar suites.
🛸
UAV & Robotics
High-stability flight control and sensory data links.
📡
Radar Arrays
EMI-shielded connectivity for phased-array systems.
⚕️
Medical
Interference-free paths for high-frequency diagnostics.
Procurement FAQ
Is it compatible with legacy MS27467?
Yes, it is 100% intermateable with existing MS27466, MS27656, and MS27468 receptacles.
What are the shipping standards?
Orders are vacuum-sealed with ESD protection and double-wall corrugated packing for air freight.
